PSX CS2 - REGULATED POWER SUPPLY

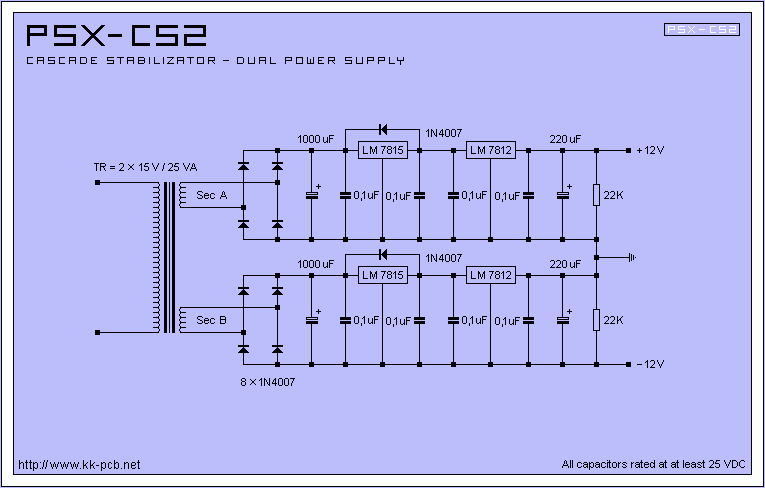

CIRCUIT DIAGRAM:
- This power supply can be used for most audio circuits, that are run on dual rail voltages ( +, GND, - )
- PSX-CS2 use all positive integrated regulators in Cascade operation for low noise.
- It is suitable for Preamplifiers, Active Crossovers, RIAA Phono Preamps, and other audio circuits that requires quiet PS.
- However, it is not suitable for Power Amplifiers, for PA application see PS-X1, PS-X2 or PS-X3 Power Supplies.

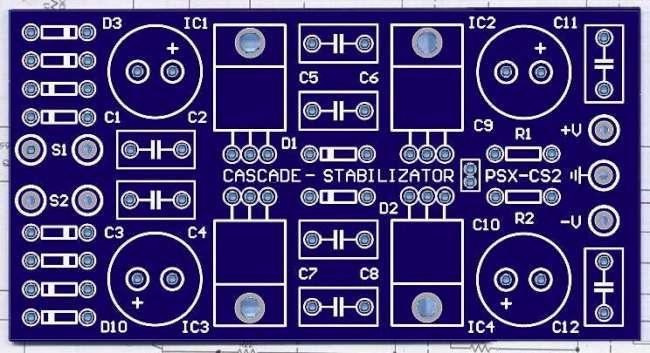

PCB:
PCB is made of FR-4 fiberglass material with Cu-50 mikron + Pb track overlay (tinplated), CNC drilled, with two sided Cyan soldermask, and with White component overlay.
Printed circuit boards comes with the partlist, stuffing guide and circuit diagram.
PCB size is : 92 mm x 48 mm ... ( 3.60 in x 1.89 in )
Two PCB's are required for stereo, one per each channel.
Professional made printed circuit boards are available :
1 Pcb. ….. 17.00 Euro
2 Pcb. ….. 28.00 Euro
( Worldwide shipping included )
|
|
|
|
