3-WAY ACTIVE CROSSOVER

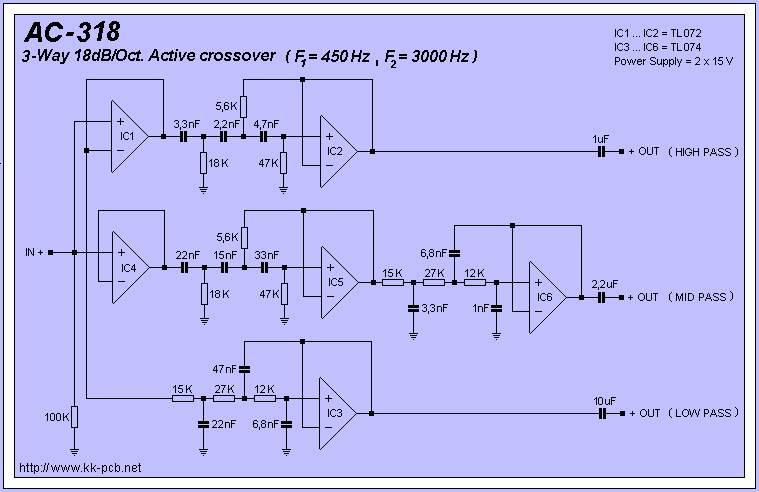

CIRCUIT DIAGRAM:
POWER SUPPLY FOR AC 318 ACTIVE CROSSOVER:
POWER PSX CS2 -
Power supply for AC 318 crossover

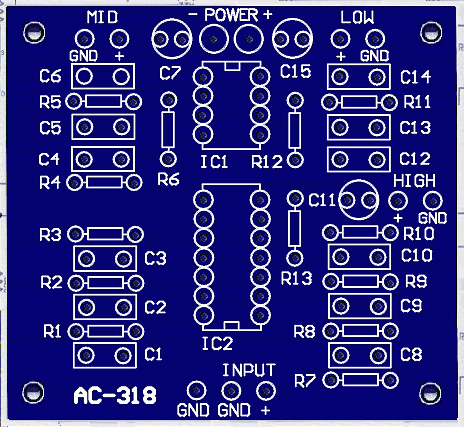

PCB:
PCB is made of FR-4 fiberglass material with Cu-50 mikron + Pb track overlay (tinplated), CNC drilled, with two sided blue soldermask, and with white component overlay.
It comes with the partlist, stuffing guide and circuit diagram.
PCB size is : 60 mm x 55 mm ... ( 2,37 in x 2,17 in )
Two PCB's are required for stereo, one per each channel.
Professional made printed circuit boards are available :
1 Pcb. ….. Euro 14.00
2 Pcb. ….. Euro 22.00
(Worldwide shipping included)
|
|
|
|
